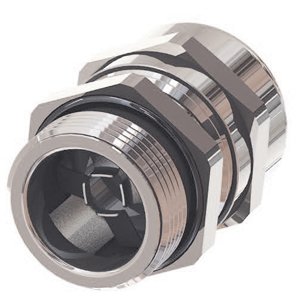

EP2-42
Category: EMC Grounding Glands
| Thread | PG 42 |
| Series | CG EMC-2 EMC Grounding Gland |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cULus, DNV-GL, CE, RoHS |
| Clamping Range | 1.181 - 1.497 in. (30.0 - 38.0 mm) |
| Shield Diameter (in) | 1.102 |
| Shield Diameter (mm) | 28 |
| Thread Diameter | 2.126 in. (54 mm) |
| Wrenching Flats | 2.283 in. (58 mm) |
| Thread Length | 0.472 in. (12 mm) |
| Height (in) | 1.89 |
| Height (mm) | 48 |
| Locknut P/N | LPE-42 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for EMC-2 Grounding Glands |
| Installation Guide | EMC Installation Guide |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
| In Stock | Buy Now |
