Thread PG 11

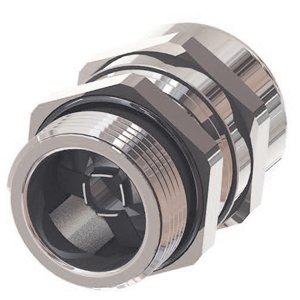

Series CG EMC-2 EMC Grounding Gland
Material Nickel Plated Brass
Temp Range (Permanent) -20°C to +100°C
Temp Range (Intermittent) -40°C to +150°C
Protection Class IP 68 - 5 Bar
Flammability V2 (according to UL 94)
Approvals cURus, DNV-GL, CE, RoHS
Clamping Range 0.197 - 0.394 in. (5.0 - 10.0 mm)
Shield Diameter (in) 0.157
Shield Diameter (mm) 4
Thread Diameter 0.732 in. (18.6 mm)
Wrenching Flats 0.787 in. (20 mm)
Thread Length 0.236 in. (6 mm)
Height (in) 1.024
Height (mm) 26
Torque Values Torque Values for EMC-2 Grounding Glands
Installation Guide EMC Installation Guide
Thread & Hole Sizes Thread Diameters & Holes Sizes
Product Datasheet
