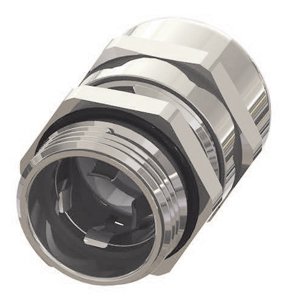

EN4-1/2
Category: EMC Grounding Glands
| Thread | NPT 1/2" |
| Series | CG EMC-4 EMC Grounding Gland |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | DNV-GL, CE, RoHS |
| Clamping Range | 0.236 - 0.472 in. (6.0 - 12.0 mm) |
| Shield Diameter (in) | .177 - .394 |
| Shield Diameter (mm) | 4.5 - 10.0 |
| Thread Diameter | 0.839 in. (21.3 mm) |
| Wrenching Flats | 0.866 in. (22 mm) |
| Thread Length | 0.591 in. (15 mm) |
| Height (in) | 1.476 |
| Height (mm) | 37.5 |
| Locknut P/N | LN-1-2 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for EMC-4 Grounding Glands |
| Installation Guide | EMC Installation Guide |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
