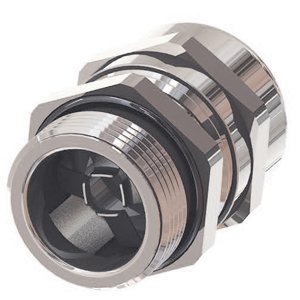

EN2-3/8
Category: EMC Grounding Glands
| Thread | NPT 3/8" |
| Series | CG EMC-2 EMC Grounding Gland |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cURus, DNV-GL, CE, RoHS |
| Clamping Range | 0.196 - 0.394 in. (5.0 - 10.0 mm) |
| Shield Diameter (in) | 0.157 |
| Shield Diameter (mm) | 4 |
| Thread Diameter | 0.673 in. (17.1 mm) |
| Wrenching Flats | 0.787 in. (20 mm) |
| Thread Length | 0.453 in. (11.5 mm) |
| Height (in) | 1.161 |
| Height (mm) | 29.5 |
| Locknut P/N | LNE-3-8 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for EMC-2 Grounding Glands |
| Installation Guide | EMC Installation Guide |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
