Part #: 34007223
| Type | Reeling, Lift and Specialty Cables |
| Segment | Airport Equipment Cables |
| Series | GP 400 SF |

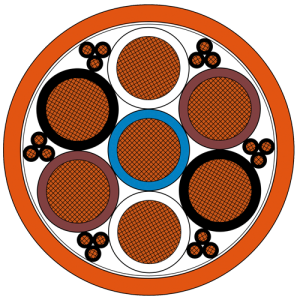

| Gauge/c | 7 x 2AWG + (6x3 x 18 AWG) |
| mm2 | 35 |
| Conductors | bare copper strands |
| Color Code |
control conductors: black with numbers 1 - 18; neutral conductor: blue; phase conductor: white, brown, black (two conductors of the same color for the phase) |
| Insulation | SABIX |
| Jacket | Orange Special Compound |
| Nominal OD | 42.2 mm (1.661 in.) |
| Approvals | CE, EAC, RoHS |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
