Part #: 34004421
| Type | Reeling, Lift and Specialty Cables |
| Segment | Airport Equipment Cables |
| Series | GP 400 QF |

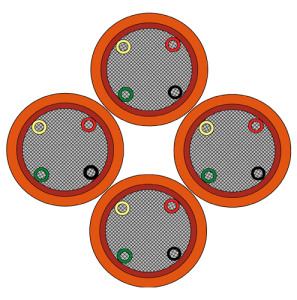

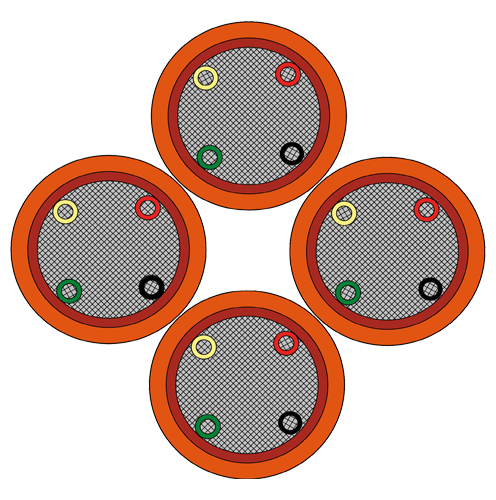

| Gauge/c | 4 x (2/0 AWG + 4 x18 AWG) |
| mm2 | 70 |
| Conductors | tinned copper strands |
| Color Code |
control conductors: red, black, green, yellow; power supply conductors: red |
| Insulation | SABIX |
| Jacket | Orange PUR |
| Nominal OD | 42.5 mm (1.673 in.) |
| Approvals | CE, EAC, RoHS |
| Temperature Range | -50°C to +90°C |
| Halogen-Free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil Resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Other Characteristics | Halogen-free |
| View PDF For Complete Technical Specifications |
