| Type | Bus and Ethernet Cables |
| Series | IBS 617 Flexible PVC UL |
| Gauge/c | 24 AWG (≈ 14/34)/3pr |
| Color Code | DIN 47100 |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac PVC (RAL 4001) |
| Approvals | UR AWM, CE, EAC, RoHS |
| Voltage | 300 |
| Temperature Range | -30°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | S IBS 618 Flexing PUR UL |
| Gauge/c | 24 AWG (≈ 14/34)/3pr |
| Color Code | DIN 47100 |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac PUR (RAL 4001) |
| Approvals | UR AWM, CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | S IBS 616 Flexing PUR |
| Gauge/c | 24 AWG (≈ 16/32)/3pr |
| Color Code | DIN 47100 |
| Shielding | Tinned Braid Shield |
| Jacket | Red lilac PUR (RAL 4001) |
| Approvals | CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |

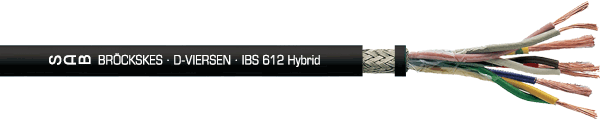

| Series | IBS 612 Flexible PVC + 18/3c |
| Gauge/c | 24 AWG (≈ 14/34)/3pr + 18 AWG (≈ 30/32)/3c |
| Color Code |
pairs: #1- white, brown, #2- green, yellow, #3- gray, pink 1.0 mm²: red, blue and green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Black PVC (RAL 9005) |
| Approvals | CE, EAC, RoHS |
| Voltage | 300 |
| Temperature Range | -30°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |

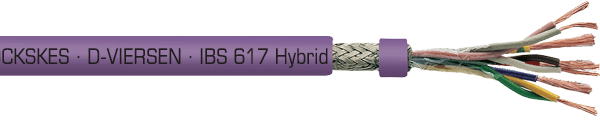

| Series | IBS 617 Flexible PVC + 18/3c UL |
| Gauge/c | 24 AWG (≈ 14/34)/3pr + 18 AWG (≈ 30/32)/3c |
| Color Code |
pairs: #1- white, brown, #2- green, yellow, #3- gray, pink 1.0 mm²: red, blue and green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac PVC (RAL 4001) |
| Approvals | UR AWM, CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -30°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |

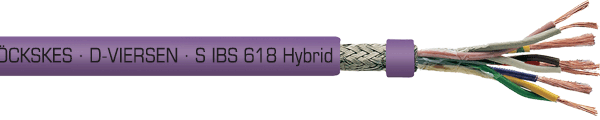

| Series | S IBS 618 Flexing PUR + 18/3c UL |
| Gauge/c | 24 AWG (≈ 14/34)/3pr + 18 AWG (≈ 56/34)/3c |
| Color Code | pairs: #1- white, brown, #2- green, yellow, #3- gray, pink 1.0 mm²: red, blue and green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac PUR (RAL 4001) |
| Approvals | UR AWM, CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | S IBS 616 Flexing PUR + 18/3c |
| Gauge/c | 24 AWG (≈ 14/34)/3pr + 18 AWG (≈ 56/34)/3c |
| Color Code | Pairs: #1- white, brown, #2- green, yellow, #3- gray, pink 1.0 mm²: red, blue and green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac PUR (RAL 4001) |
| Approvals | CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | SABIX IBS 610 |
| Gauge/c | 24 AWG (≈ 16/32)/3pr |
| Color Code | DIN 47100 |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac SABIX® (RAL 4001) |
| Approvals | CE, EAC, RoHS |
| Voltage | 300 |
| Temperature Range | -50°C to +90°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | SABIX IBS 610 FRNC |
| Gauge/c | 24 AWG (≈ 16/32)/3pr |
| Color Code | DIN 47100 |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac SABIX® (RAL 4001) |
| Approvals | CE, EAC, RoHS |
| Voltage | 300 |
| Temperature Range | -40°C to +85°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | SABIX IBS 610 +18/3c |
| Gauge/c | 24 AWG (≈ 14/34)/3pr + 18 AWG (≈ 30/32)/3c |
| Color Code | DIN 47100 |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac SABIX® (RAL 4001) |
| Approvals | CE, EAC, RoHS |
| Voltage | 300 |
| Temperature Range | -50°C to +90°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | SABIX IBS 610 FRNC+18/3c |
| Gauge/c | 24 AWG (≈ 14/34)/3pr + 18 AWG (≈ 30/32)/3c |
| Color Code | DIN 47100 |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac SABIX® (RAL 4001) |
| Approvals | CE, EAC, RoHS |
| Voltage | 300 |
| Temperature Range | -40°C to +85°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | SABIX IBL 600 FRNC (Interbus Loop) |
| Gauge/c | 16 AWG (≈ 27-29/30)/2c |
| Color Code | HD 308 |
| Jacket | May Green SABIX® (RAL 6017) |
| Approvals | CE, EAC, RoHS |
| Voltage | 300 |
| Temperature Range | -40°C to +85°C |
| View PDF For Complete Technical Specifications |
