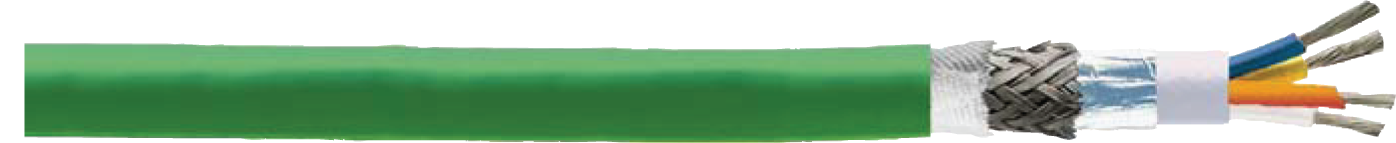

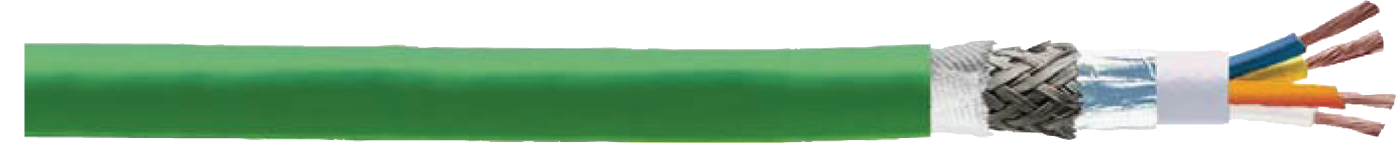

/images/bus-cables/PN661
Type Bus and Ethernet Cables
Series PN 661 Type B UL
Gauge/c 22 AWG (≈ 7/30)/4c
Color Code Blue, Yellow, White, Orange
Shielding Foil Shield, Tinned Braid Shield
Jacket Green SABIX® (RAL 6018)
Approvals UR AWM, CE, EAC, RoHS
Voltage 300
Temperature Range -40°C to +75°C
PDF View PDF For Complete Technical Specifications
/images/bus-cables/SPN668
Type Bus and Ethernet Cables
Series S PN 668 Type C
Gauge/c 22 AWG/(≈ 19/34)/4c
Color Code Blue, Yellow, White, Orange
Shielding Foil Shield, Tinned Braid Shield
Jacket Green PUR (RAL 6018)
Approvals CE, EAC, RoHS
Voltage 350
Temperature Range -40°C to +70°C
PDF View PDF For Complete Technical Specifications
/images/bus-cables/SPN667
Type Bus and Ethernet Cables
Series S PN 667 Type C UL/CSA
Gauge/c 22 AWG (≈ 7/30)/4c
Color Code Blue, Yellow, White, Orange
Shielding Tinned Braid Shield, Foil Shield
Jacket Green PUR (RAL 6018)
Approvals UR AWM, CSA AWM, CE, EAC, RoHS
Voltage 300
Temperature Range -40°C to +80°C
PDF View PDF For Complete Technical Specifications
/images/bus-cables/SPN667
Type Bus and Ethernet Cables
Series S PN 667 Type C UL/CSA
Gauge/c 22 AWG (≈ 19/34)/4c
Color Code Blue, Yellow, White, Orange
Shielding Tinned Braid Shield, Foil Shield
Jacket Green PUR (RAL 6018)
Approvals UR AWM, CSA AWM, CE, EAC, RoHS
Voltage 300
Temperature Range -40°C to +80°C
PDF View PDF For Complete Technical Specifications
/images/bus-cables/SPN669
Type Bus and Ethernet Cables
Series S PN 669 Type C UL
Gauge/c 22 AWG (≈ 19/34)/4c
Color Code Blue, Yellow, White, Orange
Shielding Tinned Braid Shield, Foil Shield
Jacket Green PUR (RAL 6018)
Approvals UR AWM, CE, EAC, RoHS
Voltage 300
Temperature Range -30°C to +80°C
PDF View PDF For Complete Technical Specifications

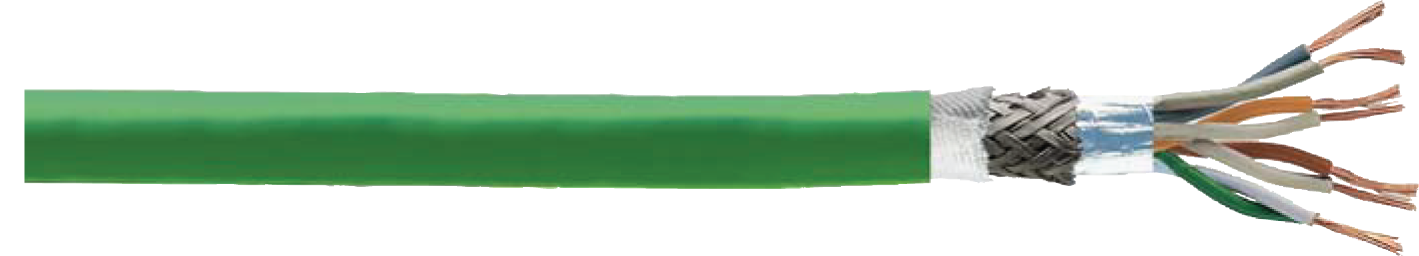

/images/bus-cables/PN678
Type Bus and Ethernet Cables
Series PN 678 Type A
Gauge/c 26 AWG/4pr
Color Code white conductors with numbers 1 - 4 (+ blue, orange, green, brown)
Shielding Foil Shield, Tinned Braid Shield
Jacket Green PVC (RAL 6018)
Approvals CE, EAC, RoHS
Voltage 350
Temperature Range -30°C to +70°C
PDF View PDF For Complete Technical Specifications
/images/bus-cables/PN678
Type Bus and Ethernet Cables
Series PN 679 Type B
Gauge/c 26 AWG (≈ 7/34)/4pr
Color Code white conductors with numbers 1 - 4 + (blue, orange, green, brown)
Shielding Foil Shield, Tinned Braid Shield
Jacket Green PUR (RAL 6018)
Approvals CE, EAC, RoHS
Voltage 350
Temperature Range -40°C to +70°C
PDF View PDF For Complete Technical Specifications
/images/bus-cables/SPN681
Approvals CE, EAC, RoHS

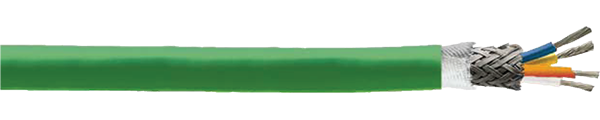

/images/bus-cables/DRPN689PHighflex
Type Bus and Ethernet Cables
Series DR PN 689 P Highflex Reeling
Gauge/c 22 AWG (≈ 19/34)/2pr
Color Code Blue, Yellow, White, Orange
Shielding Tinned Braid Shield, Foil Shield
Jacket Green PUR (RAL 6018)
Approvals CE, EAC, RoHS
Voltage 300
Temperature Range -40°C to +90°C
PDF View PDF For Complete Technical Specifications
/images/bus-cables/DRPN689PHighflex
Type Bus and Ethernet Cables
Series DR PN 689 P Highflex Reeling
Gauge/c 26 AWG (≈ 19/38)/4pr
Color Code blue, orange, green, brown + 4 white cores with consecutive numbers
Shielding Tinned Braid Shield, Foil Shield
Jacket Black PUR (RAL 9005)
Approvals CE, EAC, RoHS
Voltage 300
Temperature Range -40°C to +90°C
PDF View PDF For Complete Technical Specifications
/images/bus-cables/SPN668Hybrid
Type Bus and Ethernet Cables
Series S PN 668 Hybrid Flexing
Gauge/c 22 AWG/(≈19/34)2pr + 16 AWG/(≈ 84/34)4c
Color Code
22 AWG: blue, yellow, white, orange
16 AWG: black conductors with consecutive numbers
Shielding Tinned Braid Shield, Foil Shield
Jacket Green PUR (RAL 6018)
Approvals UR AWM, CE, EAC, RoHS
Voltage 300
Temperature Range -40°C to +90°C
PDF View PDF For Complete Technical Specifications
