All Cable Types
| Type | ETFE, FEP and FPA Cables |
| Series | TD 833 CF |
| Gauge/c | 20 AWG (7 strand) /8c |
| Color Code | #1- white, #2- brown, #3- green, #4- yellow, #5- gray, #6- pink, #7- blue, #8- red |
| Shielding | Tinned Braid Shield |
| Jacket | White FEP (RAL 1013) |
| Approvals | UR AWM, cUR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -90°C to +180°C |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | A 9 L |
| Gauge/c | 16 AWG/2c |
| Color Code | green, white |
| Approvals | RoHS |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | Continuous Flex Cables |
| Series | SABclean SD 787 C TP |
| Gauge/c | 24 AWG/2pr |
| Color Code | #1- white/brown, #2- green/yellow |
| Jacket | TPE Black (RAL 9005) |
| Approvals | CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Tray and VFD Cables |
| Series | TR 600 CY Plus |
| Gauge/c | 18 AWG/37c |
| Color Code | Black #'d plus ground |
| Shielding | Tinned Braid Shield, Foil Shield |
| Jacket | Black special oil resistant pressure extruded PVC (RAL 9005) |
| Approvals | UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS |
| Voltage | 600 |
| Temperature Range | -25°C to +105°C |
| View PDF For Complete Technical Specifications |
| Type | Compensating and Extension Cables |

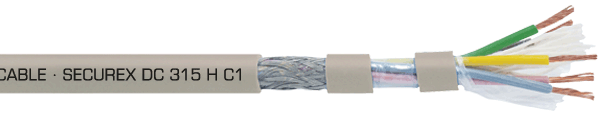

| Series | SECUREX DC 315 H C1 |
| Gauge/c | 20 AWG/4c |
| Color Code | #1- white, #2- brown, #3- green, #4- yellow |
| Shielding | Tinned Braid Shield |
| Jacket | Grayish tan LSZH (RAL 7032) |
| Approvals | CE, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 700 HDTR |
| Gauge/c | 2 AWG (≈ 272/26)/2c |
| Color Code | HD 308 |
| Jacket | Reddish Brown Besilen (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +200°C; +250°C (short-term use); UL/cUL: up to +200°C |
| View PDF For Complete Technical Specifications |
| Type | Halogen Free Cables (SABIX) |
| Series | SABIX BL 402 FRNC |
| Gauge/c | 8 AWG (≈ 77/26)/1c |
| Jacket | Black SABIX® FRNC (RAL 9005) |
| Approvals | DNV, CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -40°C to +90°C |
| View PDF For Complete Technical Specifications |
| Type | ETFE, FEP and FPA Cables |
| Series | TD 833 CF |
| Gauge/c | 20 AWG (7 strand) /10c |
| Color Code | #1- white, #2- brown, #3- green, #4- yellow, #5- gray, #6- pink, #7- blue, #8- red, #9- black, #10- violet |
| Shielding | Tinned Braid Shield |
| Jacket | White FEP (RAL 1013) |
| Approvals | UR AWM, cUR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -90°C to +180°C |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | A 9 L |
| Gauge/c | 16 AWG/2c |
| Color Code | green, white |
| Approvals | RoHS |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | Continuous Flex Cables |
| Series | SABclean SD 787 C TP |
| Gauge/c | 24 AWG/3pr |
| Color Code | #1- white/brown, #2- green/yellow, #3- gray/pink |
| Jacket | TPE Black (RAL 9005) |
| Approvals | CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Tray and VFD Cables |
| Series | TR 600 CY Plus |
| Gauge/c | 18 AWG/50c |
| Color Code | Black #'d plus ground |
| Shielding | Tinned Braid Shield, Foil Shield |
| Jacket | Black special oil resistant pressure extruded PVC (RAL 9005) |
| Approvals | UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS |
| Voltage | 600 |
| Temperature Range | -25°C to +105°C |
| View PDF For Complete Technical Specifications |
| Type | Compensating and Extension Cables |
| Series | SECUREX DC 315 H C1 |
| Gauge/c | 20 AWG/5c |
| Color Code | #1- white, #2- brown, #3- green, #4- yellow, #5- gray |
| Shielding | Tinned Braid Shield |
| Jacket | Grayish tan LSZH (RAL 7032) |
| Approvals | CE, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
