All Cable Types
| Type | Reeling, Lift and Specialty Cables |
| Series | GP 400 Sy |
| Gauge/c | 2 AWG/7c |
| Color Code |
control conductors: black with numbers 1- 18 neutral conductor: blue phase conductor: white, brown, black (two conductors of the same color for the phase)neutral conductor: blue phase conductor: white, brown, black (two conductors of the same color for the phase) |
| Jacket | Orange PVC |
| Approvals | CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | ETFE, FEP and FPA Cables |
| Series | TD 833 CF |
| Gauge/c | 22 AWG (7 strand) /7c |
| Color Code | #1- white, #2- brown, #3- green, #4- yellow, #5- gray, #6- pink, #7- blue |
| Shielding | Tinned Braid Shield |
| Jacket | White FEP (RAL 1013) |
| Approvals | UR AWM, cUR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -90°C to +180°C |
| View PDF For Complete Technical Specifications |
| Type | Compensating and Extension Cables |
| Series | A 16 L |
| Gauge/c | 19 AWG/2c |
| Color Code | pink, white |
| Approvals | RoHS |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | Continuous Flex Cables |
| Series | SABclean S 780 C |
| Gauge/c | 19 AWG/2c |
| Color Code |
Black numbered conductors |
| Shielding | Tinned Braid Shield |
| Jacket | TPE Black (RAL 9005) |
| Approvals | CE, EAC, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Tray and VFD Cables |
| Series | TR 600 CY Plus |
| Gauge/c | 18 AWG/5c |
| Color Code | Black #'d plus ground |
| Shielding | Tinned Braid Shield, Foil Shield |
| Jacket | Black special oil resistant pressure extruded PVC (RAL 9005) |
| Approvals | UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS |
| Voltage | 600 |
| Temperature Range | -25°C to +105°C |
| View PDF For Complete Technical Specifications |
| Type | Data and Sensor Cables |

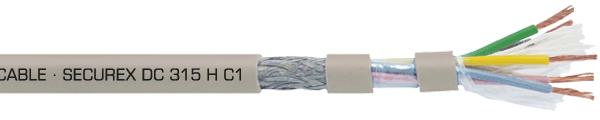

| Series | SECUREX DC 315 H C1 |
| Gauge/c | 24 AWG/12c |
| Color Code | #1- white, #2- brown, #3- green, #4- yellow, #5- gray, #6- pink, #7- blue, #8- red, #9- black, #10- violet, #11- gray-pink, #12- red-blue |
| Shielding | Tinned Braid Shield |
| Jacket | Grayish tan LSZH (RAL 7032) |
| Approvals | CE, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 700 HDTR |
| Gauge/c | 8 AWG (≈ 77/26)/7c |
| Color Code | Black #'d plus ground |
| Jacket | Reddish Brown Besilen (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +200°C; +250°C (short-term use); UL/cUL: up to +200°C |
| View PDF For Complete Technical Specifications |
| Type | Halogen Free Cables (SABIX) |
| Series | SABIX BL 446 C FRNC TP |
| Gauge/c | 19 AWG (≈ 23/32)/4pr |
| Color Code | white, blue with marking, pair number |
| Shielding | Foil Shield, Tinned Braid Shield |
| Jacket | Pigeon Blue SABIX® FRNC (RAL 5014) |
| Approvals | DNV, CE, EAC, RoHS |
| Voltage | 300 |
| Temperature Range | -40°C to +90°C |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | GP 400 Sy |
| Gauge/c | 2 AWG/7c + 18 AWG/6x3 |
| Color Code |
control conductors: black with numbers: 1-18 neutral conductor: blue phase conductor: white, brown, black (two conductors of the same color for the phase) |
| Jacket | Orange PVC |
| Approvals | CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | ETFE, FEP and FPA Cables |
| Series | TD 833 CF |
| Gauge/c | 22 AWG (7 strand) /10c |
| Color Code | #1- white, #2- brown, #3- green, #4- yellow, #5- gray, #6- pink, #7- blue, #8- red, #9- black, #10- violet |
| Shielding | Tinned Braid Shield |
| Jacket | White FEP (RAL 1013) |
| Approvals | UR AWM, cUR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -90°C to +180°C |
| View PDF For Complete Technical Specifications |
| Type | Compensating and Extension Cables |
| Series | A 16 L |
| Gauge/c | 19 AWG/2c |
| Color Code | blue, white |
| Approvals | RoHS |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | Continuous Flex Cables |
| Series | SABclean S 780 C |
| Gauge/c | 19 AWG/4c |
| Color Code |
Black numbered conductors with green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | TPE Black (RAL 9005) |
| Approvals | CE, EAC, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
