⬇ Search by Part Number

All Cable Types

  • Filter
tr_600_plus
Type Tray and VFD Cables
Series TR 600 Plus
Gauge/c 4 AWG/5c
Color Code Black #'d plus ground
Jacket Black special sunlight and oil resistant PVC (RAL 9005)
Approvals UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS
Voltage 600
Temperature Range -25°C to +105°C
PDF View PDF For Complete Technical Specifications
securex-dc-315
Type Data and Sensor Cables
Series SECUREX DC 315 H C1
Gauge/c 24 AWG/3c
Color Code #1- white, #2- brown, #3- green
Shielding Tinned Braid Shield
Jacket Grayish tan LSZH (RAL 7032)
Approvals CE, RoHS
Voltage 500
Temperature Range -40°C to +80°C
PDF View PDF For Complete Technical Specifications
sc_700_hdtr
Type High Temperature Cables
Series SC 700 HDTR
Gauge/c 10 AWG (≈ 78/28)/7c
Color Code Black #'d plus ground
Jacket Reddish Brown Besilen (RAL 3016)
Approvals UR AWM, CSA AWM, CE, EAC, RoHS
Voltage 600
Temperature Range -40°C to +200°C; +250°C (short-term use); UL/cUL: up to +200°C
PDF View PDF For Complete Technical Specifications
sabix_bl_446_c_frnc_ftp
Type Halogen Free Cables (SABIX)
Series SABIX BL 446 C FRNC TP
Gauge/c 24 AWG (≈ 14/34)/2pr
Color Code DIN 47100
Shielding Tinned Braid Shield, Foil Shield
Jacket Pigeon Blue SABIX® FRNC (RAL 5014)
Approvals DNV, CE, EAC, RoHS
Voltage 300
Temperature Range -40°C to +90°C
PDF View PDF For Complete Technical Specifications
SAB SL 851 C
Type Reeling, Lift and Specialty Cables
Series SL 851 C Exploration
Gauge/c 4 AWG/4c
Color Code HD 308
Shielding Tinned Braid Shield
Jacket Black PUR (RAL 9005)
Approvals UR AWM, cUR AWM, CE, EAC, RoHS
Voltage 500
Temperature Range -50°C to +90°C
PDF View PDF For Complete Technical Specifications
TD 833 CF
Type ETFE, FEP and FPA Cables
Series TD 833 CF
Gauge/c 22 AWG (7 strand) /3c
Color Code #1- white, #2- brown, #3- green
Shielding Tinned Braid Shield
Jacket White FEP (RAL 1013)
Approvals UR AWM, cUR AWM, CE, EAC, RoHS
Voltage 600
Temperature Range -90°C to +180°C
PDF View PDF For Complete Technical Specifications
A 16 L
Type Compensating and Extension Cables
Series A 16 L
Gauge/c 19 AWG/2c
Color Code green, white
Approvals RoHS
Temperature Range -40°C to +70°C
PDF View PDF For Complete Technical Specifications
SABclean SD 780
Type Continuous Flex Cables
Series SABclean SD 780 C
Gauge/c 22 AWG/10c
Color Code
#1- white, #2- brown, #3- green, #4- yellow, #5- gray, #6- pink, #7- blue, #8- red, #9- black, #10- violet

Shielding Tinned Braid Shield
Jacket TPE Black (RAL 9005)
Voltage 350
Temperature Range -40°C to +80°C
PDF View PDF For Complete Technical Specifications
tr_600_plus
Type Tray and VFD Cables
Series TR 600 Plus
Gauge/c 2 AWG/4c
Color Code Black #'d plus ground
Jacket Black special sunlight and oil resistant PVC (RAL 9005)
Approvals UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS
Voltage 600
Temperature Range -25°C to +105°C
PDF View PDF For Complete Technical Specifications

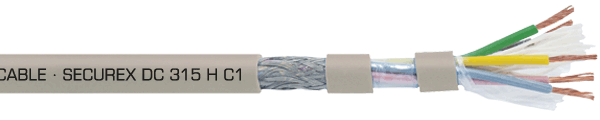

securex-dc-315
Type Data and Sensor Cables
Series SECUREX DC 315 H C1
Gauge/c 24 AWG/4c
Color Code #1- white, #2- brown, #3- green, #4- yellow
Shielding Tinned Braid Shield
Jacket Grayish tan LSZH (RAL 7032)
Approvals CE, RoHS
Voltage 500
Temperature Range -40°C to +80°C
PDF View PDF For Complete Technical Specifications
sc_700_hdtr
Type High Temperature Cables
Series SC 700 HDTR
Gauge/c 8 AWG (≈ 77/26)/2c
Color Code HD 308
Jacket Reddish Brown Besilen (RAL 3016)
Approvals UR AWM, CSA AWM, CE, EAC, RoHS
Voltage 600
Temperature Range -40°C to +200°C; +250°C (short-term use); UL/cUL: up to +200°C
PDF View PDF For Complete Technical Specifications
sabix_bl_446_c_frnc_ftp
Type Halogen Free Cables (SABIX)
Series SABIX BL 446 C FRNC TP
Gauge/c 24 AWG (≈ 14/34)/8pr
Color Code DIN 47100
Shielding Foil Shield, Tinned Braid Shield
Jacket Pigeon Blue SABIX® FRNC (RAL 5014)
Approvals DNV, CE, EAC, RoHS
Voltage 300
Temperature Range -40°C to +90°C
PDF View PDF For Complete Technical Specifications
