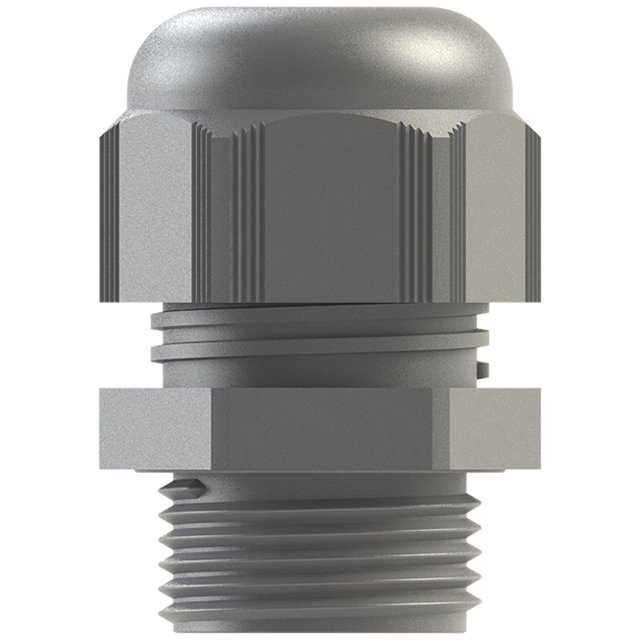

PMG-16
Category: Plastic Cable Glands
Thread | M16X1.5 |
Series | CG 100 Metric |
Material | Polyamide 6 |
Color | Gray |
Temp Range (Permanent) | -20°C to +100°C |
Temp Range (Intermittent) | -30°C to +150°C |
Protection Class | IP 68 - 5 Bar |
Flammability | V2 (according to UL 94) |
Approvals | cURus, cCSAus, VDE, DNV-GL, CE, RoHS |
Clamping Range | 0.197 - 0.394 in. (5.0 - 10.0 mm) |
Thread Diameter | 0.63 in (16 mm) |
Wrenching Flats | 0.866 in (22 mm) |
Thread Length | 0.394 in (10 mm) |
Height (in) | 1.181 |
Locknut P/N | LMG-16 (Included) |
Torque Values | Torque Values for Polyamide Glands |
Thread & Hole Sizes | Thread Diameters & Holes Sizes |
