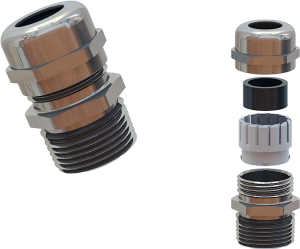

MPS-48
Category: Metal Cable Glands
| Thread | PG 48 |
| Series | CG 300 PG |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cULus, DNV-GL, CE, RoHS |
| Clamping Range | 1.339 - 1.732 in. (34.0 - 44.0 mm) |
| Thread Diameter | 2.335 in. (59.3 mm) |
| Wrenching Flats | 2.52 in. (64 mm) |
| Thread Length | 0.551 in. (14 mm) |
| Height (in) | 2.087 |
| Height (mm) | 53 |
| Locknut P/N | LPM-48 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
