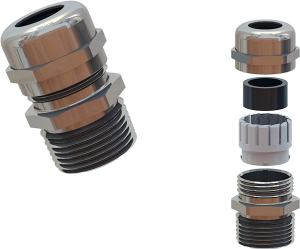

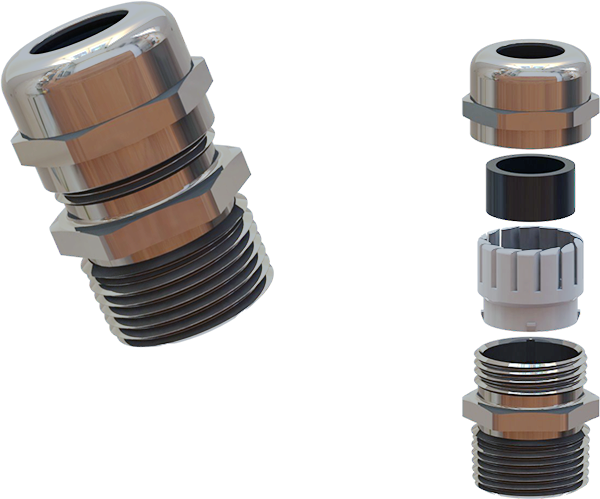

MPS-16
Category: Metal Cable Glands
| Thread | PG 16 |
| Series | CG 300 PG |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cULus, DNV-GL, CE, RoHS |
| Clamping Range | 0.394 - 0.551 in. (10.0 - 14.0 mm) |
| Thread Diameter | 0.886 in. (22.5 mm) |
| Wrenching Flats | 0.945 in. (24 mm) |
| Thread Length | 0.256 in. (6.5 mm) |
| Height (in) | 1.102 |
| Height (mm) | 28 |
| Locknut P/N | LPM-16 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
| In Stock | Buy Now |
