Part #: 34007244
| Type | Reeling, Lift and Specialty Cables |
| Segment | Airport Equipment Cables |
| Series | GP 400 SF DR |

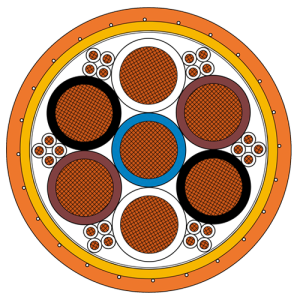

| Gauge/c | 7 x 2 AWG + (6x4 x 18 AWG) |
| mm2 | 35 |
| Conductors | bare copper strands |
| Color Code |
control conductors: black with numbers 1 - 24; neutral conductor: blue; phase conductor: white, brown, black; (two conductors of the same color for the phase) |
| Insulation | SABIX |
| Jacket | Orange PUR |
| Nominal OD | 41.4 (1.630 in.) |
| Approvals | CE, EAC, RoHS |
| Temperature Range | -50°C to +90°C |
| Halogen-Free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil Resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Other Characteristics | Halogen-free |
| View PDF For Complete Technical Specifications |
