Part #: 34007213
| Type | Reeling, Lift and Specialty Cables |
| Segment | Airport Equipment Cables |
| Series | GP 400 Sy |

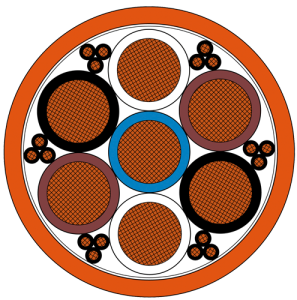

| Gauge/c | 2 AWG/7c + 18 AWG/6x3 |
| mm2 | 35 |
| Conductors | bare copper strands, class 5 |
| Color Code |
control conductors: black with numbers: 1-18 neutral conductor: blue phase conductor: white, brown, black (two conductors of the same color for the phase) |
| Insulation | PVC |
| Jacket | Orange PVC |
| Nominal OD | 37 mm (1.457 in.) |
| Approvals | CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
