Part #: 83150325R
| Type | Data and Sensor Cables |
| Segment | Communication Cables CE |

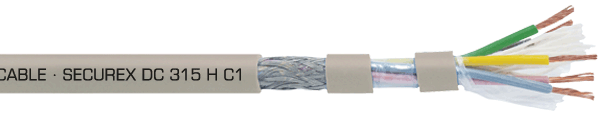

| Series | SECUREX DC 315 H C1 |
| Gauge/c | 24 AWG/3c |
| mm2 | 0.25 |
| Conductors | bare copper fine strands |
| Color Code | #1- white, #2- brown, #3- green |
| Insulation | LSZH |
| Shielding | Tinned Braid Shield |
| Jacket | Grayish tan LSZH (RAL 7032) |
| Nominal OD | 0.205 inches (5.2 mm) |
| Approvals | CE, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| Halogen-Free | acc. EN 60754-1 + IEC 60754-1 |
| Burning Characteristics | flame retardant acc. to EN 60332-1-2 + IEC 60332-1-2; no flame propagation acc. to IEC 60332-3-24 + EN 60332-3-24 + NF C 32070 C1; CPR: B2ca s1a d1 a1 |
| Other Characteristics | Halogen-free |
| View PDF For Complete Technical Specifications |
