| Type | Bus and Ethernet Cables |

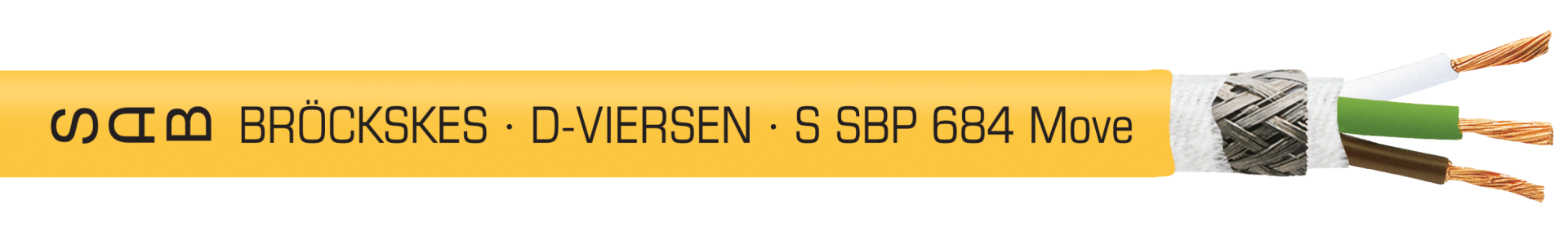

| Series | S SBP 684 Move |
| Gauge/c | 19 AWG (≈ 69/38)/3c |
| Color Code | DIN 47100 |
| Shielding | Tinned Braid Shield |
| Jacket | Safety Yellow PUR (RAL 1003) |
| Approvals | CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | S 670 |
| Gauge/c | 16 AWG/4c |
| Color Code | Black numbered conductors & green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac PUR (RAL 4001) |
| Approvals | UR AWM, CSA AWM, EAC, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | S 670 |
| Gauge/c | 16 AWG/5c |
| Color Code | Black numbered conductors & green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac PUR (RAL 4001) |
| Approvals | UR AWM, CSA AWM, EAC, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | S 670 |
| Gauge/c | 14 AWG/4c |
| Color Code | Black numbered conductors & green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac PUR (RAL 4001) |
| Approvals | UR AWM, CSA AWM, EAC, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | S 670 |
| Gauge/c | 14 AWG/5c |
| Color Code | Black numbered conductors & green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac PUR (RAL 4001) |
| Approvals | UR AWM, CSA AWM, EAC, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | S 671 |
| Gauge/c | 18 AWG/2c |
| Color Code | Black numbered conductors & green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Silver Gray PVC (RAL 7001) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +75°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | S 671 |
| Gauge/c | 18 AWG/3c |
| Color Code | Black numbered conductors & green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Silver Gray PVC (RAL 7001) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +75°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | S 671 |
| Gauge/c | 16 AWG/2c |
| Color Code | Black numbered conductors & green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Silver Gray PVC (RAL 7001) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +75°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |
| Series | S 671 |
| Gauge/c | 16 AWG/5c |
| Color Code | Black numbered conductors & green/yellow ground |
| Shielding | Tinned Braid Shield |
| Jacket | Silver Gray PVC (RAL 7001) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +75°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |

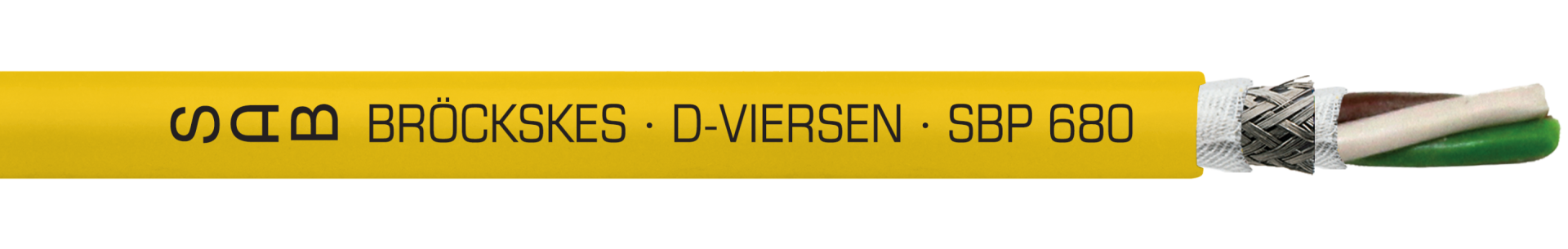

| Series | SBP 680 Static |
| Gauge/c | 19 AWG (≈ 24/32)/3c |
| Color Code | DIN 47100 |
| Shielding | Tinned Braid Shield |
| Jacket | Signal Yellow PUR (RAL 1003) |
| Approvals | CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |

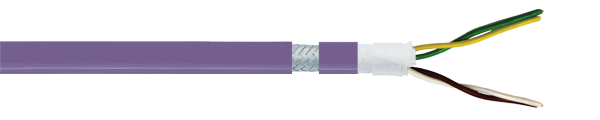

| Series | S PB 644 Flexing PUR |
| Gauge/c | 24 AWG (≈ 32/38)/2pr |
| Color Code | #1- white/brown, #2- green/yellow |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac PUR (RAL 4001) |
| Approvals | CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | Bus and Ethernet Cables |

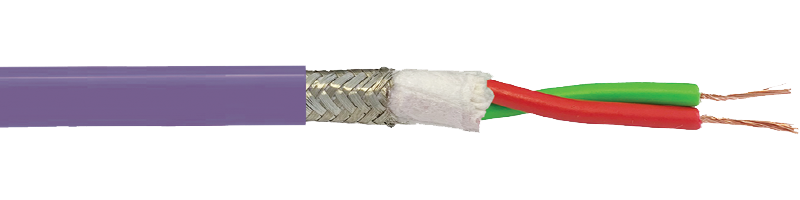

| Series | S PB 644 Flexing PUR PA |
| Gauge/c | 24 AWG (≈ 32/38)/2c |
| Color Code | red, green |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac PUR (RAL 4001) |
| Approvals | CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
