All Cable Types
| Type | Continuous Flex Cables |
| Series | SABorganic S 1000 Control |
| Gauge/c | 20 AWG/5c |
| Color Code | Black #'d plus ground |
| Jacket | Gray PUR |
| Approvals | CE, RoHS |
| Voltage | 500 |
| Temperature Range | -50°C to +90°C; limited time of use:+125°C (up to 2000h) |
| View PDF For Complete Technical Specifications |
| Type | Tray and VFD Cables |
| Series | TR 600 CY Plus |
| Gauge/c | 16 AWG/37c |
| Color Code | Black #'d plus ground |
| Shielding | Tinned Braid Shield, Foil Shield |
| Jacket | Black special oil resistant pressure extruded PVC (RAL 9005) |
| Approvals | UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS |
| Voltage | 600 |
| Temperature Range | -25°C to +105°C |
| View PDF For Complete Technical Specifications |
| Type | Compensating and Extension Cables |
| Series | SECUREX DC 315 H C1 |
| Gauge/c | 18 AWG/2c |
| Color Code | #1- white, #2- brown |
| Shielding | Tinned Braid Shield |
| Jacket | Grayish tan LSZH (RAL 7032) |
| Approvals | CE, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 700 C HDTR |
| Gauge/c | 16 AWG (≈ 27-29/30)/4c |
| Color Code | HD 308 |
| Shielding | Tinned Braid Shield |
| Jacket | Black Besilen (RAL 9011) |
| Approvals | UR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +200°C; +250°C (short-term use); UL/cUL: up to +200°C |
| View PDF For Complete Technical Specifications |
| Type | Halogen Free Cables (SABIX) |
| Series | SABIX BL 408 FRNC |
| Gauge/c | 14 AWG (≈ 46/30)/1c |
| Jacket | Black SABIX® FRNC (RAL 9005) |
| Approvals | DNV, CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -40°C to +90°C |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | SAB Lift |
| Gauge/c | 18 AWG (≈ 56/34)/9c |
| Color Code | Black #'d plus ground |
| Jacket | Special PVC |
| Approvals | CE, EAC, RoHS |
| Voltage | 500 |
| Temperature Range | -30°C to +70°C |
| View PDF For Complete Technical Specifications |

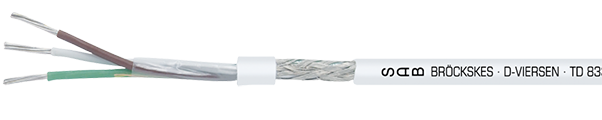

| Type | ETFE, FEP and FPA Cables |
| Series | TD 838 CF TP |
| Gauge/c | 24 AWG (7 strand) /2pr |
| Color Code | #1- white/brown, #2- green/yellow |
| Shielding | Tinned Braid Shield |
| Jacket | White FEP (RAL 1013) |
| Approvals | UR AWM, cUR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -90°C to +180°C |
| View PDF For Complete Technical Specifications |
| Type | Compensating and Extension Cables |
| Series | A 9 -100 L |
| Gauge/c | 18 AWG/2c |
| Color Code | green, white |
| Jacket | PVC |
| Approvals | RoHS |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | Continuous Flex Cables |
| Series | SABorganic S 1000 Control |
| Gauge/c | 18 AWG/12c |
| Color Code | Black #'d plus ground |
| Jacket | Gray PUR |
| Approvals | CE, RoHS |
| Voltage | 500 |
| Temperature Range | -50°C to +90°C; limited time of use:+125°C (up to 2000h) |
| View PDF For Complete Technical Specifications |
| Type | Tray and VFD Cables |
| Series | TR 600 CY Plus |
| Gauge/c | 16 AWG/41c |
| Color Code | Black #'d plus ground |
| Shielding | Tinned Braid Shield, Foil Shield |
| Jacket | Black special oil resistant pressure extruded PVC (RAL 9005) |
| Approvals | UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS |
| Voltage | 600 |
| Temperature Range | -25°C to +105°C |
| View PDF For Complete Technical Specifications |

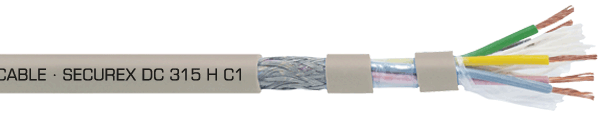

| Type | Compensating and Extension Cables |
| Series | SECUREX DC 315 H C1 |
| Gauge/c | 18 AWG/3c |
| Color Code | #1- white, #2- brown, #3- green |
| Shielding | Tinned Braid Shield |
| Jacket | Grayish tan LSZH (RAL 7032) |
| Approvals | CE, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 700 C HDTR |
| Gauge/c | 16 AWG (≈ 27-29/30)/5c |
| Color Code | HD 308 |
| Shielding | Tinned Braid Shield |
| Jacket | Black Besilen (RAL 9011) |
| Approvals | UR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +200°C; +250°C (short-term use); UL/cUL: up to +200°C |
| View PDF For Complete Technical Specifications |
