All Cable Types
| Type | Compensating and Extension Cables |

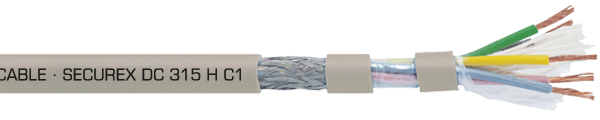

| Series | SECUREX DC 315 H C1 |
| Gauge/c | 20 AWG/24c |
| Color Code | #1- white, #2- brown, #3- green, #4- yellow, #5- gray, #6- pink, #7- blue, #8- red, #9- black, #10- violet, #11- gray-pink, #12- red-blue, #13- white-green, #14- brown-green, #15- white-yellow, #16- yellow-brown, #17- white-gray, #18- gray-brown, #19- white-pink, #20- pink-brown, #21- white-blue, #22- brown-blue, #23- white-red, #24- brown-red |
| Shielding | Tinned Braid Shield |
| Jacket | Grayish tan LSZH (RAL 7032) |
| Approvals | CE, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 700 C HDTR |
| Gauge/c | 19 AWG (≈ 23/32)/5c |
| Color Code | HD 308 |
| Shielding | Tinned Braid Shield |
| Jacket | Black Besilen (RAL 9011) |
| Approvals | UR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +200°C; +250°C (short-term use); UL/cUL: up to +200°C |
| View PDF For Complete Technical Specifications |
| Type | Halogen Free Cables (SABIX) |
| Series | SABIX BL 402 FRNC |
| Gauge/c | 3/0 AWG (≈ 484/24)/1c |
| Jacket | Black SABIX® FRNC (RAL 9005) |
| Approvals | DNV, CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -40°C to +90°C |
| View PDF For Complete Technical Specifications |
| Type | Torsion Cables |
| Series | Profibus-DP cable with current supply |
| Gauge/c | 2 x 22 AWG + 3 x 18 AWG |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac TMPU (RAL 4001) |
| Approvals | CE, EAC, RoHS |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | A 9 L |
| Gauge/c | 16 AWG/2c |
| Color Code | green, white |
| Approvals | RoHS |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | Continuous Flex Cables |
| Series | SABclean SD 787 C TP |
| Gauge/c | 24 AWG/12pr |
| Color Code | #1- white/brown, #2- green/yellow, #3- gray/pink, #4- blue/red, #5- black/purple, #6- gray-pink/red-blue, #7- white-green/brown-green, #8- white-yellow/yellow-brown, #9- white-gray/gray-brown, #10- white-pink/pink-brown, #11- white-blue/brown-blue, #12- white-red/brown-red |
| Jacket | TPE Black (RAL 9005) |
| Approvals | CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Tray and VFD Cables |
| Series | TR 600 CY Plus |
| Gauge/c | 16 AWG/9c |
| Color Code | Black #'d plus ground |
| Shielding | Tinned Braid Shield, Foil Shield |
| Jacket | Black special oil resistant pressure extruded PVC (RAL 9005) |
| Approvals | UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS |
| Voltage | 600 |
| Temperature Range | -25°C to +105°C |
| View PDF For Complete Technical Specifications |
| Type | Compensating and Extension Cables |
| Series | SECUREX DC 315 H C1 |
| Gauge/c | 19 AWG/2c |
| Color Code | #1- white, #2- brown |
| Shielding | Tinned Braid Shield |
| Jacket | Grayish tan LSZH (RAL 7032) |
| Approvals | CE, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 700 C HDTR |
| Gauge/c | 18 AWG (≈ 30/32)/2c |
| Color Code | HD 308 |
| Shielding | Tinned Braid Shield |
| Jacket | Black Besilen (RAL 9011) |
| Approvals | UR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +200°C; +250°C (short-term use); UL/cUL: up to +200°C |
| View PDF For Complete Technical Specifications |
| Type | Halogen Free Cables (SABIX) |
| Series | SABIX BL 402 FRNC |
| Gauge/c | 4/0 AWG (≈ 589/24)/1c |
| Jacket | Black SABIX® FRNC (RAL 9005) |
| Approvals | DNV, CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -40°C to +90°C |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | Coupling cable T 790 |
| Gauge/c | 33 x 16 AWG + 3 x 8 AWG + 4 x (2 x 16 AWG) |
| Shielding | Tinned Braid Shield |
| Jacket | Black Special PUR (RAL 9005) |
| Approvals | CE, RoHS |
| Temperature Range | -50°C to +90°C |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | A 9 L |
| Gauge/c | 16 AWG/2c |
| Color Code | orange, white |
| Approvals | RoHS |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
