All Cable Types
| Type | ETFE, FEP and FPA Cables |
| Series | TD 838 CF TP |
| Gauge/c | 28 AWG (7 strand) /3pr |
| Color Code | #1- white/brown, #2- green/yellow, #3- gray/pink |
| Shielding | Tinned Braid Shield |
| Jacket | White FEP (RAL 1013) |
| Approvals | UR AWM, cUR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -90°C to +180°C |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | A 9 L |
| Gauge/c | 16 AWG/2c |
| Color Code | pink, white |
| Approvals | RoHS |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | Continuous Flex Cables |
| Series | SABclean SD 787 C TP |
| Gauge/c | 24 AWG/7pr |
| Color Code | #1- white/brown, #2- green/yellow, #3- gray/pink, #4- blue/red, #5- black/purple, #6- gray-pink/red-blue, #7- white-green/brown-green |
| Jacket | TPE Black (RAL 9005) |
| Approvals | CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Tray and VFD Cables |
| Series | TR 600 CY Plus |
| Gauge/c | 16 AWG/7c |
| Color Code | Black #'d plus ground |
| Shielding | Tinned Braid Shield, Foil Shield |
| Jacket | Black special oil resistant pressure extruded PVC (RAL 9005) |
| Approvals | UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS |
| Voltage | 600 |
| Temperature Range | -25°C to +105°C |
| View PDF For Complete Technical Specifications |
| Type | Compensating and Extension Cables |

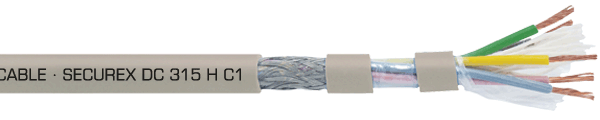

| Series | SECUREX DC 315 H C1 |
| Gauge/c | 20 AWG/18c |
| Color Code | #1- white, #2- brown, #3- green, #4- yellow, #5- gray, #6- pink, #7- blue, #8- red, #9- black, #10- violet, #11- gray-pink, #12- red-blue, #13- white-green, #14- brown-green, #15- white-yellow, #16- yellow-brown, #17- white-gray, #18- gray-brown |
| Shielding | Tinned Braid Shield |
| Jacket | Grayish tan LSZH (RAL 7032) |
| Approvals | CE, RoHS |
| Voltage | 500 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 700 C HDTR |
| Gauge/c | 19 AWG (≈ 23/32)/4c |
| Color Code | HD 308 |
| Shielding | Tinned Braid Shield |
| Jacket | Black Besilen (RAL 9011) |
| Approvals | UR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +200°C; +250°C (short-term use); UL/cUL: up to +200°C |
| View PDF For Complete Technical Specifications |
| Type | Halogen Free Cables (SABIX) |
| Series | SABIX BL 402 FRNC |
| Gauge/c | 2/0 AWG (≈ 543/26)/1c |
| Jacket | Black SABIX® FRNC (RAL 9005) |
| Approvals | DNV, CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -40°C to +90°C |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | Profibus-DP cable with valve control |
| Gauge/c | 22 AWG/2c + 16 AWG/4c |
| Shielding | Tinned Braid Shield |
| Jacket | Red Lilac TMPU (RAL 4001) |
| Approvals | CE, EAC, RoHS |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | ETFE, FEP and FPA Cables |
| Series | TD 838 CF TP |
| Gauge/c | 28 AWG (7 strand) /4pr |
| Color Code | #1- white/brown, #2- green/yellow, #3- gray/pink, #4- blue/red |
| Shielding | Tinned Braid Shield |
| Jacket | White FEP (RAL 1013) |
| Approvals | UR AWM, cUR AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -90°C to +180°C |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | A 9 L |
| Gauge/c | 16 AWG/2c |
| Color Code | blue, white |
| Approvals | RoHS |
| Temperature Range | -40°C to +70°C |
| View PDF For Complete Technical Specifications |
| Type | Continuous Flex Cables |
| Series | SABclean SD 787 C TP |
| Gauge/c | 24 AWG/8pr |
| Color Code | #1- white/brown, #2- green/yellow, #3- gray/pink, #4- blue/red, #5- black/purple, #6- gray-pink/red-blue, #7- white-green/brown-green, #8- white-yellow/yellow-brown |
| Jacket | TPE Black (RAL 9005) |
| Approvals | CE, EAC, RoHS |
| Voltage | 350 |
| Temperature Range | -40°C to +80°C |
| View PDF For Complete Technical Specifications |
| Type | Tray and VFD Cables |
| Series | TR 600 CY Plus |
| Gauge/c | 16 AWG/8c |
| Color Code | Black #'d plus ground |
| Shielding | Tinned Braid Shield, Foil Shield |
| Jacket | Black special oil resistant pressure extruded PVC (RAL 9005) |
| Approvals | UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS |
| Voltage | 600 |
| Temperature Range | -25°C to +105°C |
| View PDF For Complete Technical Specifications |
